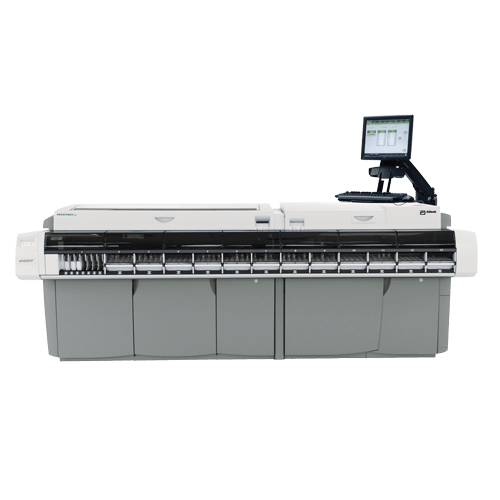

No one doubts that 2 plus 2 equals 4. You can expect that kind of sensible logic when you add the ARCHITECT c16000 to the ARCHITECT i2000SR to create the ARCHITECT ci16200 integrated system. Every detail in the ARCHITECT ci16200 has been designed to handle high-volume, complex workloads with consistent quality, STAT processing, and ease of use.
The ARCHITECT ci16200 integrated system meets the complex needs of the larger laboratory by providing clinical chemistry and immunoassay testing on a single platform.
For in vitro diagnostic use only.
Description | |
Reaction Method | See c16000 and i2000SR specifications |
Maximum Throughput | Up to 2,000 tests/hour |
Sample Types | See c16000 and i2000SR specifications |
Sample Tubes | Height: 72-102 mm Diameter 9.6-16.1 mm |
Sample Cup | Yes (50 µl dead volume) |
Sample Capacity | 365 |
Sample Barcode Types | Code 39, Codabar, Interleaved 2 of 5, Code 128 |
Sample Result Storage | 50,000 |
Sample Volume | See c16000 and i2000SR specifications |
Automatic Dilution | Yes |
Sample Probe Carryover | ≤0.1 parts per million |
Reagent Capacity | Up to 155 refrigerated positions plus patented ISE (Na+, K+ and Cl-) |
Reagent Type | See c16000 and i2000SR specifications |
Reagent Onboard Stability | See c16000 and i2000SR specifications |
Calibration Frequency | See c16000 and i2000SR specifications |
Sample, Clot and Bubble Detection | Yes |
Reagent Pressure Monitoring | See c16000 and i2000SR specifications |
Sample Interference Measurement | Yes: Hemolysis, Icterus, and Lipemia |
System Control Center | 1 SCC, with color touchscreen monitor, keyboard and mouse |
Onboard Maintenance Records | Yes |
Online Error Code Help | Yes |
Host Interface | Bidirectional, serial RS-232 interface, host query option available |
Remote Diagnostics | AbbottLink |
Dimensions | 48" x 127" x 49" 121.9 x 322.6 x 124.5 cm |
Weight | 2,679 lbs 1215 kg |
Electrical Requirements | See c16000 and i2000SR specifications |
Water Requirements | See c16000 and i2000SR specifications |
Heat Output* | See c16000 and i2000SR specifications |
Sample Loading | RSH + Carousel |
*Values provided represent the typical output in "Running" mode for the system processing module and sample handler. A maximum value of 389 BTU/hr was obtained for the System Control Center (SCC) using the ARCHITECT i2000SR as a representative system. Values obtained during an internal study. Data is on file with Abbott. | |
Note: Some of these specifications are based on the combination of the ARCHITECT c16000 and the ARCHITECT i2000SR. For accurate and complete specifications, please refer to the individual operations manual. |
Review a few details about the ARCHITECT ci16200 integrated system in the specifications sheet (PDF, 118 KB).
