You don’t have time for additional maintenance and extra steps. Your laboratory needs to perform quickly and accurately. Improve your efficiency and standardize laboratory processes for consistency for all of your laboratory employees.
For in vitro diagnostic use.

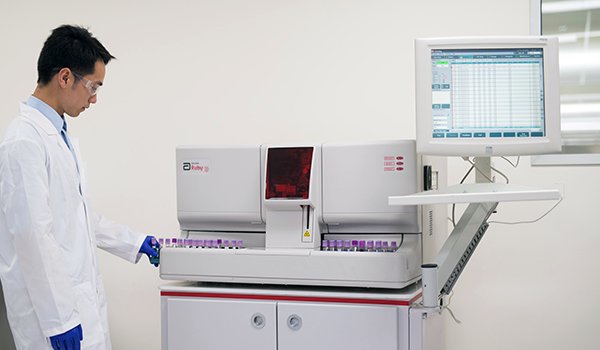

For reliable performance that leads to quality results—the first time—CELL-DYN Ruby delivers and outperforms similar tools. With advanced capabilities for the medium-sized laboratory, you can process more complete blood counts in less time.
The CELL-DYN Ruby reduces the need for microscopic blood smear reviews and repeat testing. Optical technology allows you to allocate resources and ultimately improve your laboratory's efficiency.

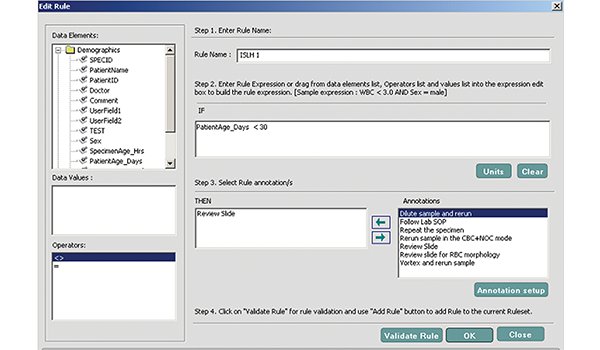

The CELL-DYN Ruby allows you to improve your efficiency by providing rules-based annotations to standardize laboratory processes. This provides consistency in result handling among all your laboratory personnel.

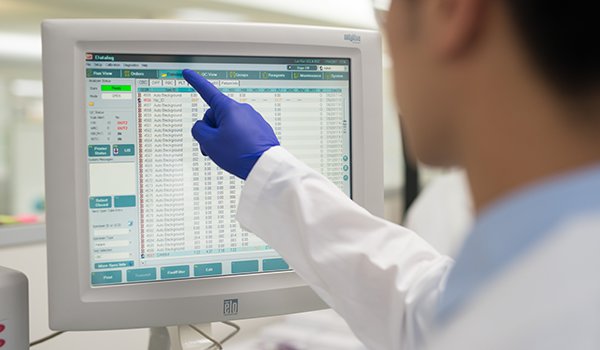

The touch-screen interface is straightforward, easy-to-use, and offers customizable views and handy tool tips to optimize the operator's experience. Routine tasks such as reagent and maintenance monitoring are automated, and non-routine tasks, such as calibration, are assisted by the software. Maintenance is simple to perform with the help of on-board videos.

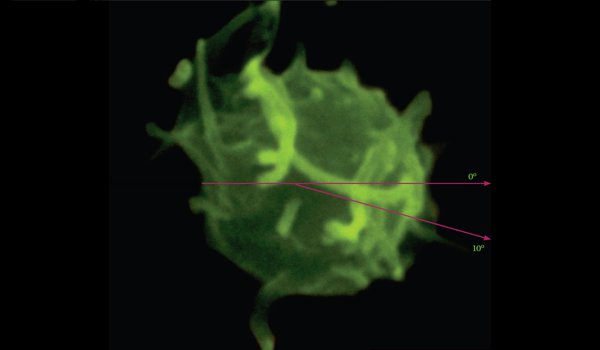

The CELL-DYN Ruby two-angle optical platelet count accurately enumerates and sizes to help ensure first pass reportable results, all while reducing additional testing.
With only three reagents needed to perform a complete blood count (CBC) with 5-part WBC differential analysis, you'll free up operator time to focus on providing patient care.

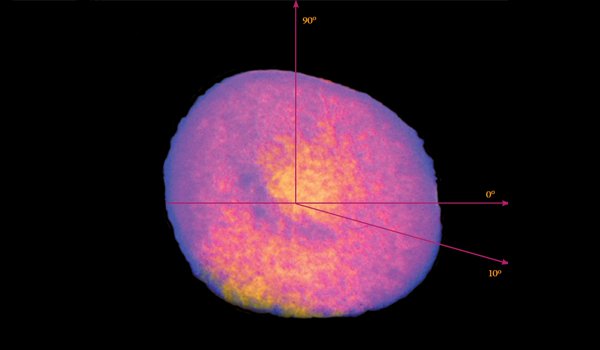

CELL-DYN Ruby’s three-dimensional optical red blood cell measurement technology ensures reliable, accurate and precise performance for your hematology workload.
| description | ||
| Maximum Throughput (Autoloader Mode) | CBC + Differential: Up to 84 per hour | |
| Sample Volume | Open Mode 150 μL, Sample Loader 230 μL | |
| Reagents | Only 4 reagents including reticulocytes | |
| Technology | WBC and differential | 4 angle optical MAPSS Multiple Scatterplot Analysis |
| Platelets | Dual angle optical analysis, no extra reagent, no reflex testing requirement | |
| Reticulocytes | New Methylene Blue NCCLS method, supravital staining technique | |
| Analytical Measurement Ranges | WBC | 0.02–246.8 x 103/μL |
| RBC | 0.00–7.50 x 106/μL | |
| HGB | 0.0–25.0 g/dL | |
| HCT | 8.3-79.8% | |
| MCV | 58–139 fL | |
| RDW | 10.0-29.8% | |
| PLT | 0.0–3000 x 103/μL | |
| MPV | 4.3-17.2 fL | |
| RETC | 0.2–22.9% | |
| Data Management | Windows®-based operating system. Rules-based result annotations. Full on-board QC package. Levey-Jennings plots. Moving Averages. Westgard rules. 10,000 results stored with graphics. Auto calibration online guide. | |
| System Control Center | A single computer with color touch-screen monitor, keyboard, and mouse | |
| Dimensions (HxWxD) |
| |
| Weight | 232 pounds (105.2 kilograms) | |
| Electrical Requirements* | VAC 100-240V, 50/60Hz | |
| Maximum Power Consumption* | 550 watts | |
| *Analyzer only. | ||
Reagents
| REagent descriptions | Size and List Number |
| WBC Lyse | 3.8 L cubitainer (08H52-01) |
| Diluent / Sheath | 20 L cubitainer (01H73-01) |
| CN free HGB / NOC Lyse | 3.8 L cubitainer (03H80-02) |
| Reticulocyte | 5.0 mL tubes, each tube containing 3.7 mL of reagent (03H40-01) |
Controls and Calibrators
| control/calibrator | stability |
| CELL-DYN 26 Plus Control | Open Vial: 8 days |
| CELL-DYN Retic Plus Control | Open Vial: 14 days |
| CELL-DYN 29 Plus Control (With Retic) | Open Vial: 7 days |
| CELL-DYN HemCal Plus Calibrator | Open Vial: 5 days |
