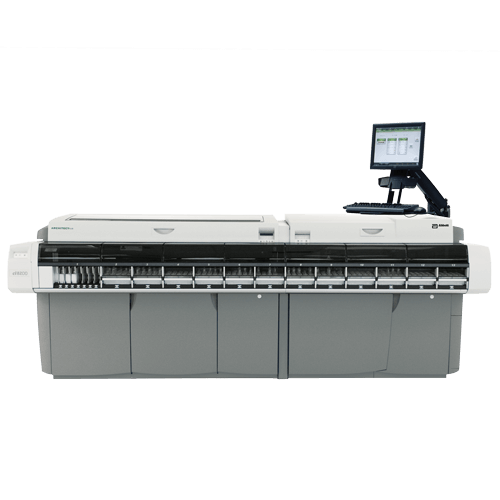

One platform. Multiple benefits. The ARCHITECT ci8200 combines the ARCHITECT c8000 and the ARCHITECT i2000SR to provide clinical chemistry and immunoassay testing in a single integrated system. By delivering fast, high-quality STAT results, the ARCHITECT ci8200 allows for laboratories to handle complex workloads.
The ARCHITECT ci8200 integrated system provides laboratories a single testing module that is specifically designed to improve laboratory efficiency and turnaround time. The ARCHITECT ci8200 offers a maximum throughput of up to 1,400 tests per hour, including 1,200 clinical chemistry and 200 immunoassay tests. Featuring a load-up capacity of 365 samples with 35 priority positions, the ARCHITECT ci8200 has up to 146 refrigerated reagent positions plus Integrated Chip Technology (Na+, K+ and Cl-).
For in vitro diagnostic use only.
Description | |
Reaction Method | See c8000 and i2000SR specifications |
Maximum Throughput | Up to 1,400 tests/hour |
Sample Types | See c8000 and i2000SR specifications |
Sample Tubes | Height: 72-102 mm Diameter 9.6-16.1 mm |
Sample Cup | Yes (50 µl dead volume) |
Sample Capacity | 365 |
Sample Barcode Types | Code 39, Codabar, Interleaved 2 of 5, Code 128 |
Sample Result Storage | 50,000 |
Sample Volume | See c8000 and i2000SR specifications |
Automatic Dilution | Yes |
Sample Probe Carryover | ≤0.1 parts per million |
Reagent Capacity | Up to 146 refrigerated positions plus patented ISE (Na+, K+ and Cl-) |
Reagent Type | See c8000 and i2000SR specifications |
Reagent Onboard Stability | See c8000 and i2000SR specifications |
Calibration Frequency | See c8000 and i2000SR specifications |
Sample, Clot and Bubble Detection | Yes |
Reagent Pressure Monitoring | See c8000 and i2000SR specifications |
Sample Interference Measurement | Yes: Hemolysis, Icterus, and Lipemia |
System Control Center | 1 SCC, with color touchscreen monitor, keyboard and mouse |
Onboard Maintenance Records | Yes |
Online Error Code Help | Yes |
Host Interface | Bidirectional, serial RS-232 interface, host query option available |
Remote Diagnostics | AbbottLink |
Dimensions | 48" x 127" x 49" |
Weight | 2,447 lbs |
Electrical Requirements | See c8000 and i2000SR specifications |
Water Requirements | See c8000 and i2000SR specifications |
Heat Output* | See c8000 and i2000SR specifications |
Sample Loading | RSH + Carousel |
*Values provided represent the typical output in “Running” mode for the system processing module and sample handler. A maximum value of 389 BTU/hr was obtained for the System Control Center (SCC) using the ARCHITECT i2000SR as a representative system. Values obtained during an internal study. Data is on file with Abbott. | |
Note: Some of these specifications are based on the combination of the ARCHITECT c8000 and the ARCHITECT i2000SR. For accurate and complete specifications, please refer to the individual operations manual. |
Review a few details about the ARCHITECT ci8200 integrated system in the specifications sheet (PDF, 118 KB).
