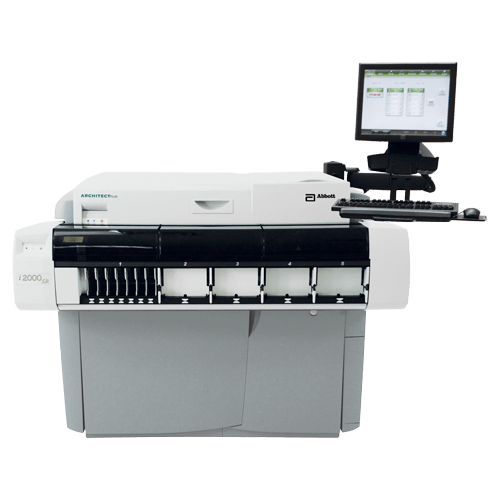

The ARCHITECT i2000SR immunoassay analyzer meets your laboratory’s high standards by delivering STAT results when you need them. The flexible protocols built into the ARCHITECT i2000SR enhance laboratory workflow and allow you to report results with confidence.
The ARCHITECT i2000SR immunoassay analyzer offers a maximum throughput of up to 200 tests per hour. Featuring a load-up capacity of 135 samples with 35 priority and 100 routine areas, the ARCHITECT i2000SR has 25 refrigerated reagent positions.
For in vitro diagnostic use only.
Description | |
Methods | CHEMIFLEX |
Maximum Throughput | Up to 100 tests/hour |
Sample Types | Serum, Plasma, Whole Blood, Urine |
Sample Tubes | Height: 72-102 mm Diameter: 9.6-16.1 mm |
Sample Cup | Yes (50 µl dead volume) |
Sample Capacity | 65 |
Sample Barcode Types | Code 39, Codabar, Interleaved 2 of 5, Code 128 |
Sample Result Storage | 50,000 |
Sample Volume | 10-150 μL, Average: 62 µL |
Automatic Dilution | Yes |
Sample Probe Carryover | ≤0.1 parts per million |
Reagent Capacity | 25 refrigerated positions |
Reagent Type | 100% liquid ready-to-use |
Reagent Onboard Stability | 14-30 days |
Calibration Frequency | Calibrate with new lot number, if controls are out of range or if specified otherwise within the package insert |
Sample, Clot and Bubble Detection | Yes |
Reagent Pressure Monitoring | Yes |
Sample Interference Measurement | No |
System Control Center | 1 SCC, with color touchscreen monitor, keyboard and mouse |
Onboard Maintenance Records | Yes |
Online Error Code Help | Yes |
Host Interface | Bidirectional, serial RS-232 interface, host query option available |
Remote Diagnostics | AbbottLink |
Dimensions | 49” x 59” x 30” 124.5 x 149.9 x 76.2 cm |
Weight | 636 lbs 288 kg |
Electrical Requirements | AC 110-120V or 200-240V, ±10%, 50 or 60 Hz self-adjusting |
Water Requirements | Purified water to dilute buffer concentrate |
Heat Output* | 2400 BTU/hr, running mode |
Sample Loading | RSH |
*Values provided represent the typical output in “Running” mode for the system processing module and sample handler. A maximum value of 389 BTU/hr was obtained for the System Control Center (SCC) using the ARCHITECT i2000SR as a representative system. Values obtained during an internal study. Data is on file with Abbott. |
Review a few details about the ARCHITECT i1000SR immunoassay analyzer in the specifications sheet (PDF, 118 KB).
Diagnostics at Abbott offers a complete portfolio of integrated solutions including Core Laboratory, Molecular, Point of Care, Rapid Diagnostics and Transfusion Medicine.
The ARCHITECT i2000SR immunoassay analyzer can be integrated with the ARCHITECT c8000 or c16000 clinical chemistry analyzers to consolidate clinical chemistry and immunoassay testing into one module.
